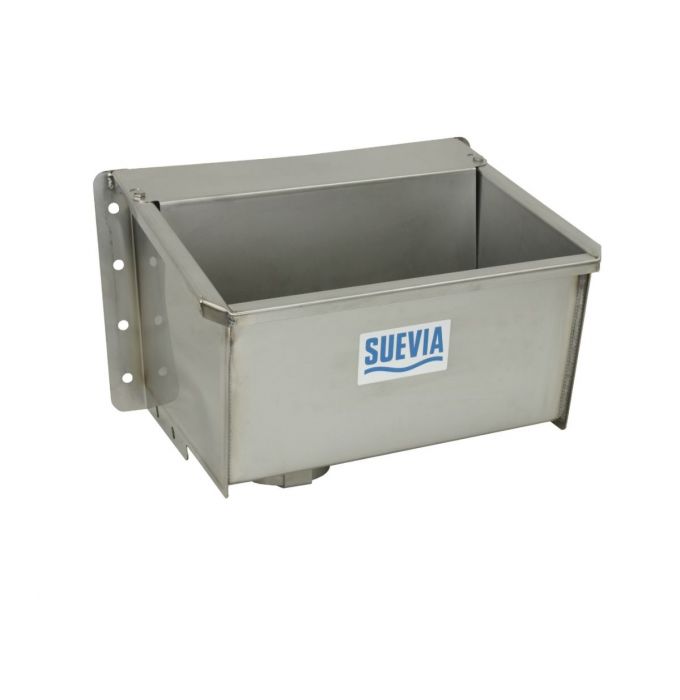

Auge Compacte en inox Suevia, modèle 6141, 22'', Ø100 mm

Compact 22" Stainless Steel Trough with New Ø100 mm Quick-Drain Outlet

- Fast watering with a high-flow float valve delivering up to 40 L/min (9 gal/min).
- 3/4" male water connection, installable from either the left or right side.
- New large Ø100 mm drain outlet for faster emptying and easier cleaning.
- Capacity: 30 litres (6.6 gal).
- Suitable for 15 to 20 animals.

Frost Protection Options Down to -20°C (-4°F)
- 24 V - 180 W heating element easily mounted underneath the trough.
- To keep the water supply line frost-free, the installation of a 20 W or 30 W heating cable wrapped along the water pipe is recommended. The heating cable is connected in parallel with the trough heating element.
- For plastic pipes, wrapping the pipe with aluminum adhesive tape is recommended.
- Power supply requires a 200 W or 500 W transformer. A thermostat can also be installed.
- For extremely cold conditions, a valve heating sleeve can be added.

Connection to a Circulating Water System
- With the 3/4" circulation kit, this trough can be integrated into a circulating water system.
- Supplied with tempered water from a Suevia water heater, the system keeps both the trough water and supply line frost-free throughout the winter.
- We recommend using a Suevia Model 303 or Model 317 water heater.

Recommended for: cattle, dairy cows and calves. Also suitable for cattle fitted with anti-suckling devices.
