Cast-iron heated waterer Model 375, for water loop, 3/4'' stainless valve

Sow and piglet waterer with drink inducer

• Heated waterer for water loop mounting with a Suevia heating unit.
• Sow waterer is frost-protected with an integrated bowl heating 24 V-40 W.
• Valve will be frost-protected with the circuit pipe.
• Completely enamelled cast-iron waterer and easy to clean.
• Always fresh and clean water – no risk of dirty water as in the case of drinking bowls with float valve.
• 3/4'' smoothly running stainless steel tube valve, even at high water pressure of 6 bar.
• Valve can be operated from all sides.
• With enticement basin behind the tube valve, which encourages the animals to drink on their own
• Little hollow, which acts as a water supply behind the valve, encourages animal learning.
• 3/4" female connection from top and bottom: suited for installation into water loop.
• Adjustable water flow up to 12 l/min (2,7 gal).
• Water flow continuously adjustable from outside by means of a regulation screw.
• Special back side design enables easy fixation into 90° corners, on the wall or on pipes.

Suevia waterer accessories

• Two fastening U-brackets for 1 1/2'' to 2'' pipes (131.0169).
• 3/4" stainless steel connection kit for water loop (103.1983).

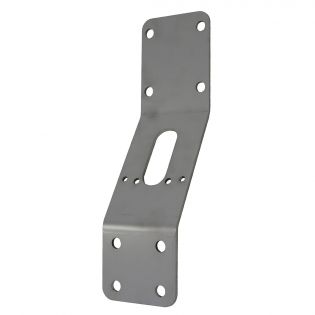

• Stainless steel mounting bracket. Recommendation : mounting of the Suevia waterer with 4 stainless steel bolts VA M10x35 or M12x35. If you use locking nuts, than the bolts must be 5 mm longer (102.1713).
• 24 V transformer of 50, 100, 200 or 500 W.
• On/off automatic thermostat (101.0389).
• Stainless steel valve protection bracket (102.0249).
• 3/4'' connection pipe, male/male, 7 1/2" (19 cm), straight (102.1127).

Recommended for: sow with piglets in farrowing pen, individual sows.

* Young animals, which have not yet learn to drink, lap the remaining water in the heated waterer and in the hollow. Automatically, they touch and activate the tube valve. Quickly, they will make a link between these two to get water.
