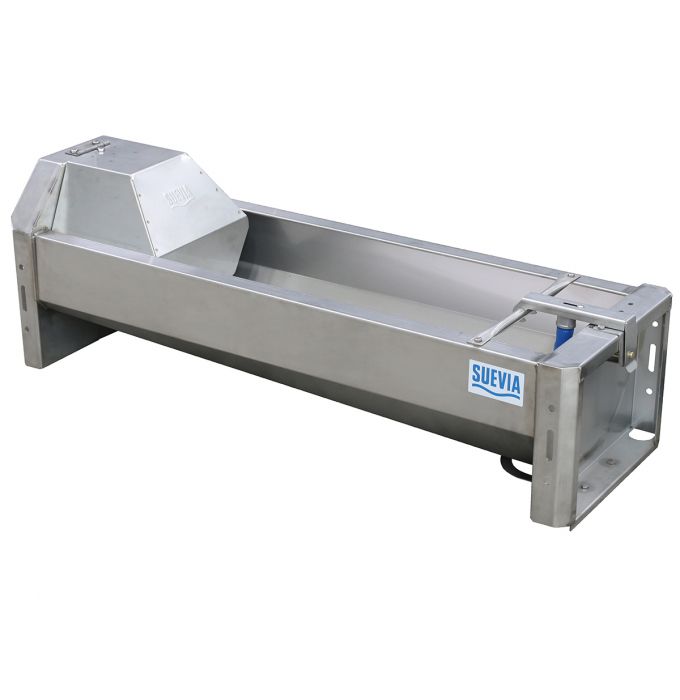

Stainless steel cattle water trough drain, Model 6714, 100L, 55''

Quick drainage stainless steel cattle water trough.

Features

- Conical inclined trough in stainless steel.

- For wall or ground mounting (legs sold separately).

- Anti-spillage rim – water wastage reduced to a minimum

- Float valve cover can be pivoted upwards without use of tools.

- Free stall drinking trough equipped with a MASTERFLOW float valve ensuring a water flow of up to 40 l/min (10 gal).

- Lever to open and close water drain plug without putting hands in water (large drainage hole for a quick and easy cleaning).

- 3/4" male connection at the front side (3/4'' female stainless elbow included).

- Integrated support for DN125 drain pipe (sold separately).

- With hole in operating drainage lever: if frost protection guard is installed as frost protection possibility (see beneath) excessive water produced by frost protection guard is channelled through hole of operating lever.

- Stainless steel trough with a capacity of 100 liters (22 gal).

- Dimensions: 55'' x 18'' x 40,5'' (140 x 46,3 x 103 cm).

Frost protection options

Option A: 24 V-180 W heating element to fix easily under the trough. Frost-free down to approx. -20°C (131.6060).
- In order to ensure a frost-free feed pipe, a frost protection 24 V heating cable of 2 or 3 meters is wrapped around the feed pipe and connected to the heating element in parallel to the power supply cable, coming from the transformer. The heating cable and the water line have to be insulated, however, additionally and protected against biting.
- For power supply a transformer 230/24 V is necessary. For automatic switch on/off of transformer a thermostat can be additionally installed (101.0389).

Option B: 24 V-180 W heating element to fix easily inside the trough. Frost-free down to approx. -20°C (131.6063).
- Supplied with stainless steel cover and junction box. Mounting requires 4 holes to be drilled.
- To ensure a frost-free feed pipe, a frost protection heating cable 24 V-20 W-2 meters or 24 V-30 W-3 meters has to be used.
- For power supply a transformer 230-24 V is necessary. For automatic switch on/off of transformer a thermostat can be additionally installed (101.0389).

Option C: Connection to a 3/4'' water loop
1. 3/4" circuit pipe in stainless steel suited for installation into all quick drainage troughs. The pipe is supplied with warm water from the water heater. This system keeps the water frost-free and protects the pipe (131.6064).
2. 1'' stainless steel circuit pipe that runs through the whole trough. Ideal for large farms (131.6110).
3. Stainless steel connection set for 1" water circuits suited for all quick drainage troughs. When using this connection set, the valve of the trough can easily be by-passed by a 1" water circuit line. For frost protection of the water in the trough an additional installation of a heating element or a frost protection guard is required (131.6067).

Option D: Frost protection by running water system
- 3/4" frost protection guard working without electricity. To install over the float valve (131.0521).
- At risk of frost the installed and adjusted frost protection guard opens automatically, the adjusted water quantity flows into the troughover the float valve, situated under the frost protection guard: water in the trough remains in motion and is prevented from freezing! Excess of water produced by the frost protection guard is channeled through the hole in the
lever of drainage plug. No ice in front of the trough.

Valve heating: for extremely cold areas, a 24 V-7 W valve heating sleeve is recommended to increase protection (131.0527).

Accessories:

- Transformers of 200 W (transfo-200ik) or 500 W (transfo-500ik).
- Heating cables of 24 V-20 W-2 meters (101.0861) or 24 V-30 W-3 meters (101.1863).
- Set of four legs (131.6031).
- Additional installation of low pressure float valve is possible (131.0738) to use, for example, warmed-up water from the milk cooling system (not possible when circuit pipe model 6064 is installed). Or possibility to add a Maxiflow float valve (131.0700).
- Bite protection plate to cover connections at the valve side. Prevents biting into frost protection heating cables and insulation. (131.6090).

This watering trough will keep water clean and healthy.

Recommended for: cows and cattles
