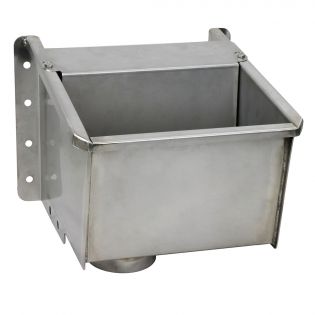

Stainless steel compact cow trough drinker, model 6140, 22'', 30 L

Compact stainless steel drinking trough of 22'' long for wall mounting.

- Efficient watering thanks to a float valve and water flow up to 40 l/min (9 gal/min).
- 3/4'' male connection possible on the left or right hand side.
- Large drainage plug of 1 1/4'' diameter for easy cleaning and evacuation.
- Capacity: 30 litres (6,5 gal).
- Good for 15 to 20 animals.

Frost-free options down to -20°C
- 24 V-180 W heating element easy to install under the trough.
- To prevent a frost-free pipe, installation of a heating cable wrap around water pipe is recommended. - Connection between cable and transformer is made in parallel with trough heating element.
- Power supply needs a transformer. A thermostat is also useful.
- For rough winters, a valve heater can be installed on the valve to add frost protection.

Connection for water loop
- With the 3/4'' connection kit for water loop, it is possible to add this trough to a loop. The pipe is feed by warm water coming form Suevia heating unit. This system keeps water frost-free and protect pipeline. We recommend the use of a Suevia water heating unit, model 303 or 317.

Accessories:
- Heating element (131.6058)
- Galvanized protection bar (131.1390)
- Water loop connection kit (131.6049)
- 200 W or 500 W transformer (transfo-200ik and transfo-500ik)
- Valve heating sleeve (131.0527)
- On/off thermostat (101.0389)
- 24 V-20 W-2 metres heating cable (101.0861)
- 24 V-30 W-3 metres heating cable (101.1863)
- 50 metres aluminium adhesive tape (101.1099)
- Heating unit (101.0303 or 101.0317)

Recommended for: cattles, cows and calves. Perfect for animals with nose ring.
