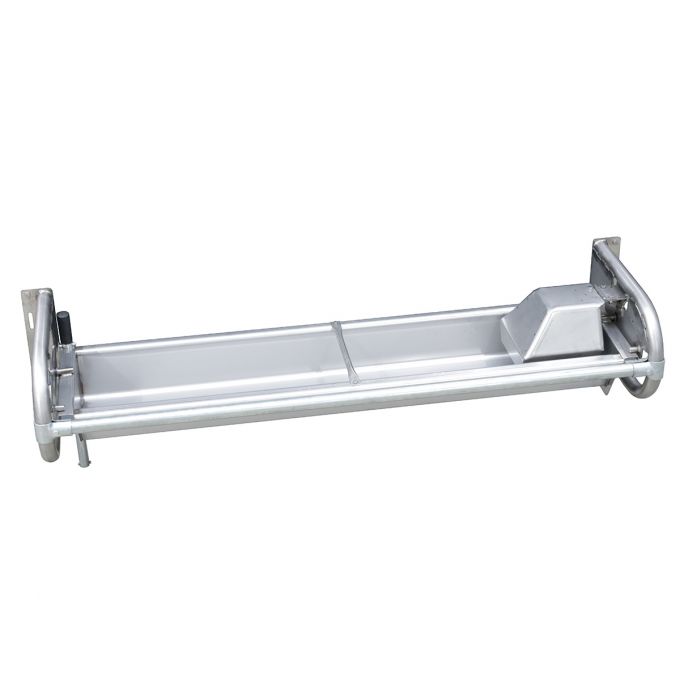

Tip-over cattle trough #8565, wall-mounted, 10'

Suevia stainless steel flat tip-over trough for cows

- For wall mounting and delivered with two stainless steel brackets.
- No sherp edges, no risks of injuries.
- Built-in rigid 3/4’’ male water connection, no flexible connection line is necessary.
- Right or left handside connection by relocation of the valve.
- 3/4'' male water connection on the left or right handside.
- MASTERFLOW float valve ensures a water flow of up to 40 l/min (9 gal). 3/4'' male front connection.
- Access to the float valve by the lift-up cover; no tools needed.
- Water saving flat tip-over trough: save about 25,000 litres per year compared to a deeper tank (200 l) with one drain every two days.
- Easily accessible water and adjustable tank height for optimal watering.
- Protection bar, pipe clamps, lever and screws are in galvanized steel.

Capacity: 105 liters (23 gal)
Dimensions: 118'' x 23'' x 15,75'' (300 x 59 x 40 cm)

Frost-free options down to -20°C

Option A
- 24 V-360 W heating element to install under the trough with a bracket to fix it. A transformer is necessary and you can also add a thermostat.
- Installation of a heating cable wrapped around water pipe. Connected to the heating element of the trough in parallel to the power supply coming from the transformer.
- For rough winters, a heating sleeve can be installed on the valve to add frost protection.

Option B
- 24 V-180 W heating element to install into the trough (4 holes needs to be drilled). Comes with a stainless steel cover and a junction box.

Option C
Connection to a water loop
1- 3/4'' stainless circuit pipe. The pipe is feed by warm water coming from the heating unit. This keeps water frost-free and protects water lines.
2- 1'' stainless steel circuit pipe that runs through the whole trough.

Option D
3/4'' frost protection system working without electricity. To install over existing float valve. In case of intense cold, a valve opens automatically and lets water gently flow, preventing frost as it creates a continuous movement. Water flow is adjustable depending how cold it gets.

Accessories:
- 24 V-360 W heating element to fix under the trough (131.6062) with the bracket (131.6089).
- 24 V-180 W heating element to fix into the trough (131.6063)
- 200 or 500 W transformer (transfo-200ik or transfo-500ik)
- On/off thermostat (101.0389)
- Heating sleeve (131.0527)
- Aluminium adhesive tape (101.1099)
- Frost protection system (131.0592)
- Stainless steel protection plate to cover connections against animal's bites (131.0582)
- 3/4'' circuit pipe (131.0591)

Recommanded for: cattles and dairy cows
